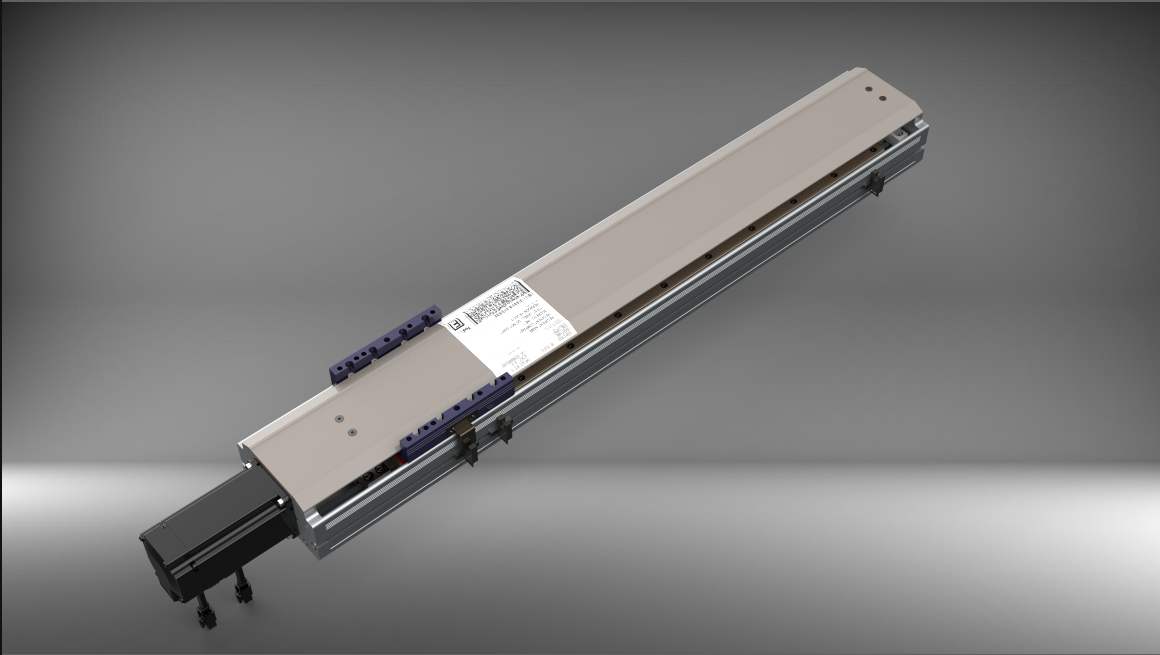

GGK linear axes with ballscrew drive are particularly suitable for applications with with increased demands on accuracy. Thanks to a freely adjustable stroke in millimetre increments as well as a variaty of options, the linear axes can be individually adapted to the respective application requirements.
Quantity:

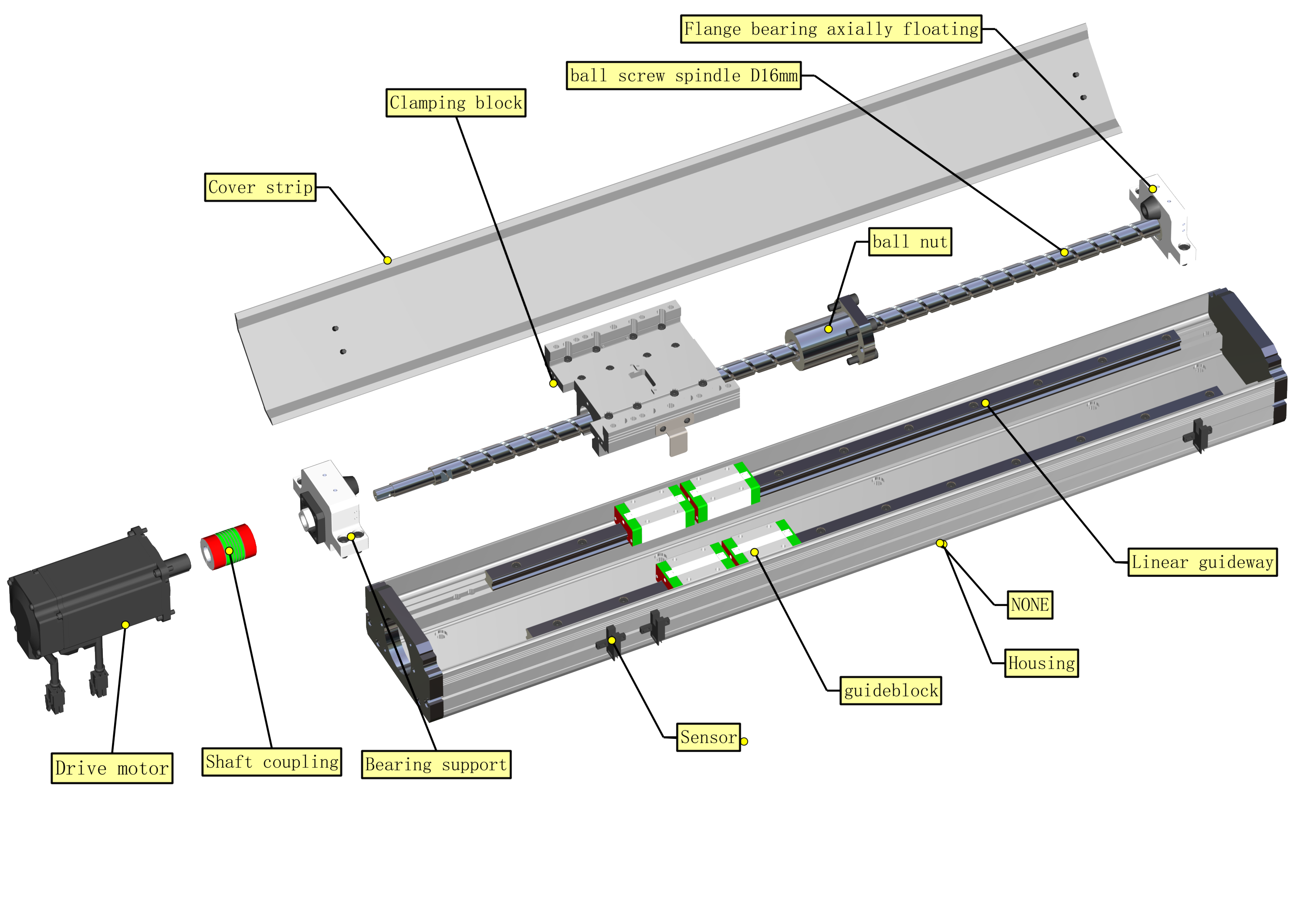

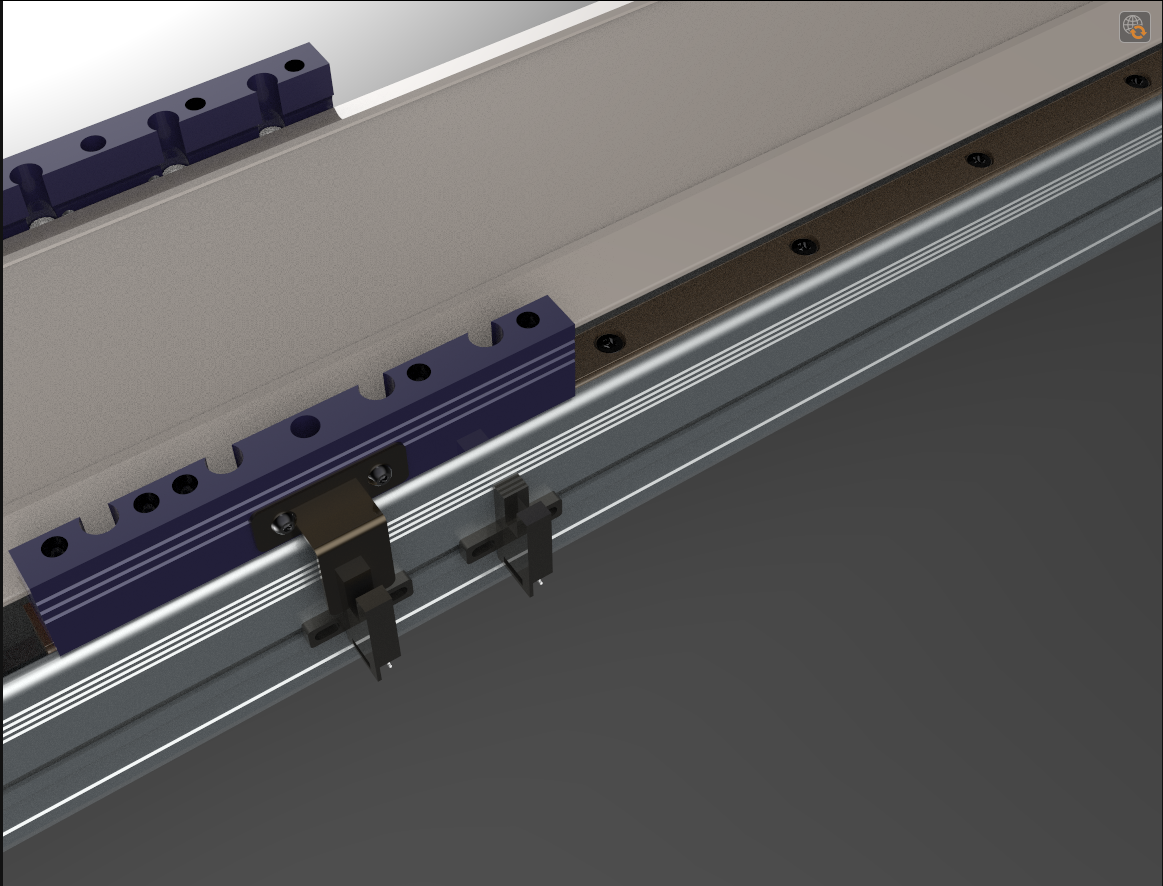

The spindle axies consists of a linear axis with spindle drive and precisely matched drive components (servo motor and servo amplifier). Depending on the application requirement, various strokes and options are available, e.g. various field bus interfaces, encoder types, holding brake and cable lengths. For multi-axis systems, the aluminium profile axis can be flexibly combined with each other without any construction effort.
| Type | Axis profile | profile width | Drive type | Max.stroke | Max speed | Max.feed force | Repeatability |
| GGk4001 | Aluminium | 40(mm) | Ballscrew | 100,150,200,custom-made | 0.5m/s | 1.271（N） | ±0.02 |
| GGK5002 | Aluminium | 60(mm) | Ballscrew | 100,150,200,custom-made | 0.5m/s | 2.541（N） | ±0.02 |
| GGK6005 | Aluminium | 60(mm) | Ballscrew | 200,300,600,custom-made | 0.5m/s | 2.541（N） | ±0.02 |
| GGK6010 | Aluminium | 60(mm) | Ballscrew | 200,300,600,custom-made | 0.5m/s | 3.149（N） | ±0.02 |
| GGK8610 | Aluminium | 86(mm) | Ballscrew | 340,540,940,custom-made | 0.5m/s | 3.149（N） | ±0.02 |
| GGK8620 | Aluminium | 86(mm) | Ballscrew | 340,540,940,custom-made | 0.5m/s | 3.149（N） | ±0.02 |
| GGK10020 | Aluminium | 100(mm) | Ballscrew | 980,1380,1680,custom-made | 0.5m/s | 3.149（N） | ±0.02 |
| GGK13020 | Aluminium | 130(mm) | Ballscrew | 980,1380,1680,custom-made | 0.5m/s | 4.069（N） | ±0.02 |
| GGK13025 | Aluminium | 130(mm) | Ballscrew | 980,1380,1680,custom-made | 0.5m/s | 6.592（N） | ±0.02 |
