CGM-Cross table
CGM specializes in professionally manufacturing high-precision 2D platform positioning systems at competitive prices
Quantity:
Crossplatform position based on precision axes can be customised to a high degree. Among others, options such as encapsulation, motor type and encoder system can be adapted to customer-specific movement tasks. This means that the highest demands on precision and dynamics can be fulfilled. From the smallest adjustment to the supply of a plug and play subsystem, our experts work together with you in drawing up the concept best suited to your needs. Prefabricated drawings and 3D models are available in advance.
- Compatible for vacuum applications (RGA tested)
- No Cogging
- High force density
- Low moving mass for highest dynamic
- No magnetic attraction for disruptive effects
- Peak force from 22.3N to 3,000N
- Continuous force from 4.5N to 415N
- Max. 230VAC
- Precision of 0.01 millimeters.
- Repeatability of 0.1 millimeters.

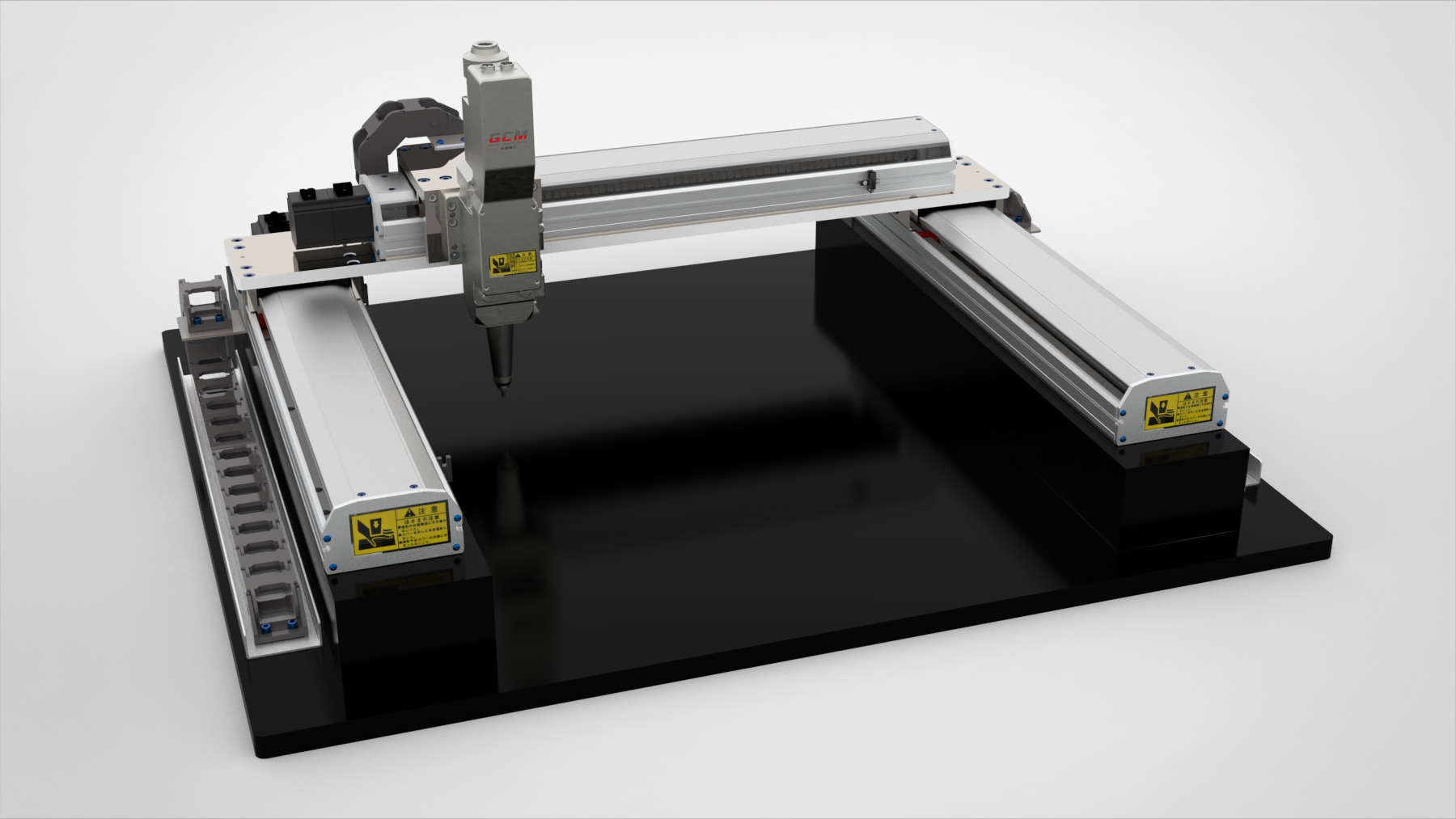

Application of platform position in precision laser equipment
We offer a range of motor options, including stepper motors, servo motors, or linear motors, tailored to meet specific customer requirements. Our team of experienced engineers collaborates closely with clients to determine the optimal motor type, assisting with parameter selection and conducting thorough force analysis. This ensures that our products deliver exceptional performance, reliability, and precision, meeting the diverse needs of vacuum applications and other demanding environments.
