GTH12A Linear Spindle Module Linear
GTH12A
In motion systems, CGM introduces high-precision applications, utilizing screw mechanical modules to ensure fast and accurate positioning.
Quantity:
In motion systems, This series of screw mechanical modules is characterized by high precision and stability. The screw-driven modules easily meet the demands for high-precision applications, ensuring stable operation to guarantee the lifespan and assembly quality of screws and sliders. Primarily applied in automated fields such as work positioning, gripping, handling, insertion, electronic component assembly, and positioning of circuit boards and wafer boxes. Widely utilized by diverse industries in the automation sector. For specific details, please refer to the description below：
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1000 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 85 | 65 | 32 | 20 | |
| Vertical(mm) | 25 | 21 | 10 | 6 | ||
| Rated Thrust(mm) | 625 | 312 | 200 | 156 | ||
| Stroke Pitch(mm) | 100-1050mm 50mm pitch | |||||
| Parts | Ac servo Motor output (W) | 400 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 15x12.5 | |||||
| Coupling(mm) | 10x14 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||
| Inside | Omoron EE-sx674(NPN) | |||||
| Allowable Overhang （N.M) | ||||

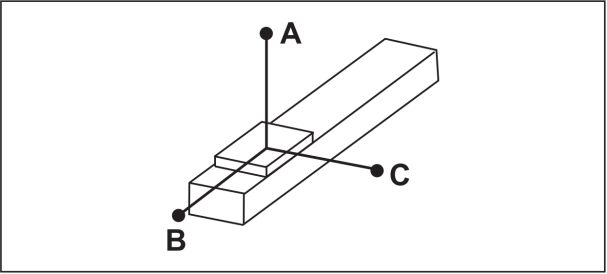

| Horizontal Installation | A | B | C | |
| lead 5 | 40kg | 2448 | 316 | 322 |
| 55kg | 2197 | 247 | 257 | |
| 70kg | 2005 | 207 | 219 | |
| lead 10 | 25kg | 1958 | 370 | 490 |
| 35kg | 1660 | 370 | 333 | |
| 47kg | 1725 | 247 | 243 | |
| lead 20 | 10kg | 2265 | 1674 | 961 |
| 20kg | 1402 | 855 | 537 | |
| 30kg | 1047 | 445 | 324 | |
| lead 32 | 8kg | 2263 | 1672 | 958 |
| 16kg | 1400 | 852 | 535 | |
| 24kg | 1052 | 448 | 328 | |
| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 40kg | 204 | 112 | 1394 |
| 55kg | 130 | 57 | 1115 | |
| 70kg | 85 | 24 | 895 | |
| lead 10 | 25kg | 414 | 333 | 1277 |
| 35kg | 235 | 157 | 929 | |
| 47kg | 129 | 57 | 751 | |
| lead 20 | 10kg | 461 | 372 | 1410 |
| 20kg | 264 | 178 | 1027 | |
| 30kg | 148 | 69 | 832 | |
| lead 32 | 8kg | 997 | 1217 | 1709 |
| 16kg | 513 | 555 | 985 | |
| 24kg | 268 | 231 | 640 | |
| Allowable Overhang （N.M) | |||

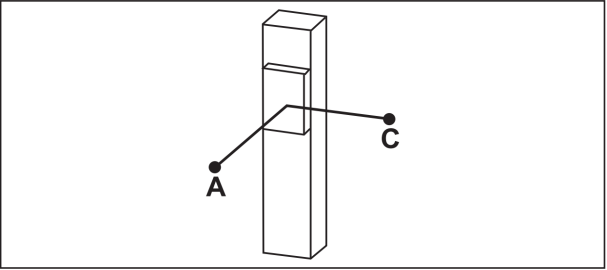

| Vertical Installation | A | C | |
| lead 5 | 8kg | 762 | 614 |
| 13kg | 607 | 489 | |
| 17kg | 498 | 483 | |
| lead 10 | 5kg | 1365 | 1101 |
| 8kg | 901 | 727 | |
| 12kg | 674 | 543 | |
| lead 20 | 2kg | 2420 | 2031 |
| 4kg | 1690 | 1360 | |
| 6kg | 1300 | 1050 | |
| lead 32 | 3kg | 1695 | 1361 |
| / | / | / | |
| / | / | / | |
Static Loading Moment： MY=280(N.M)；MP=280(N.M)； MR=95(N.M).

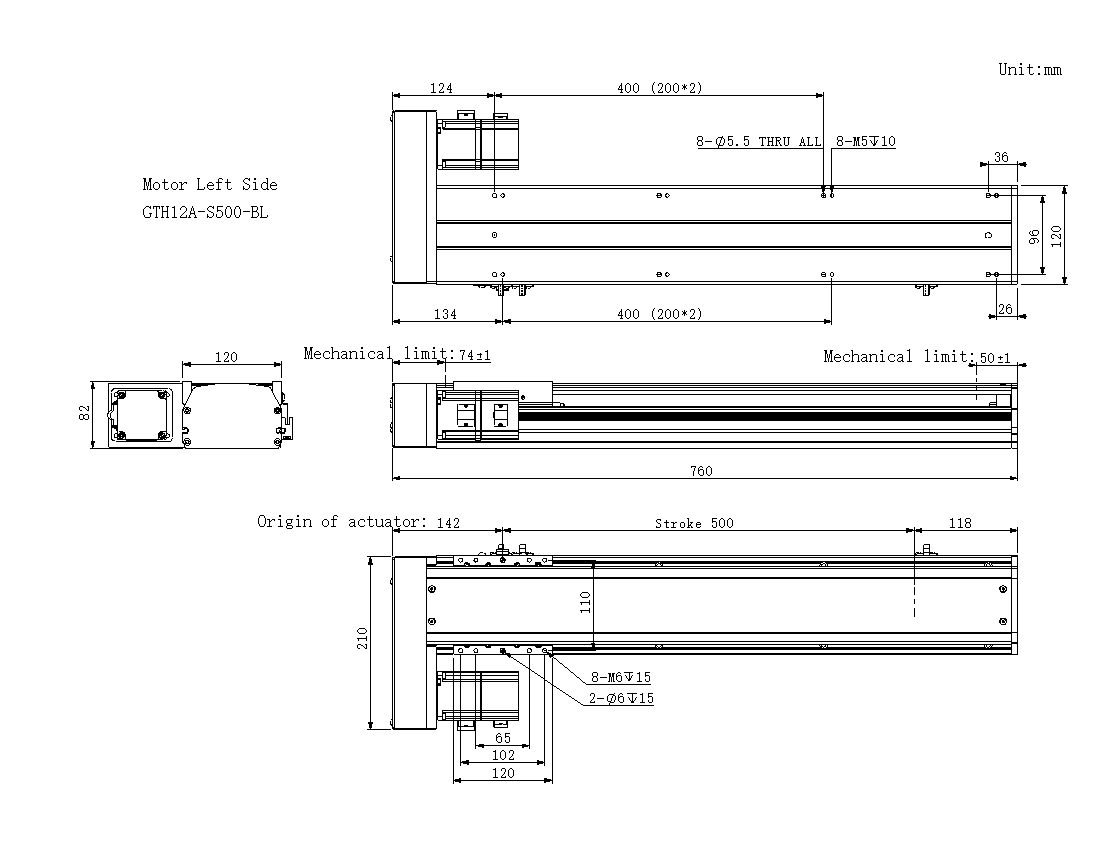

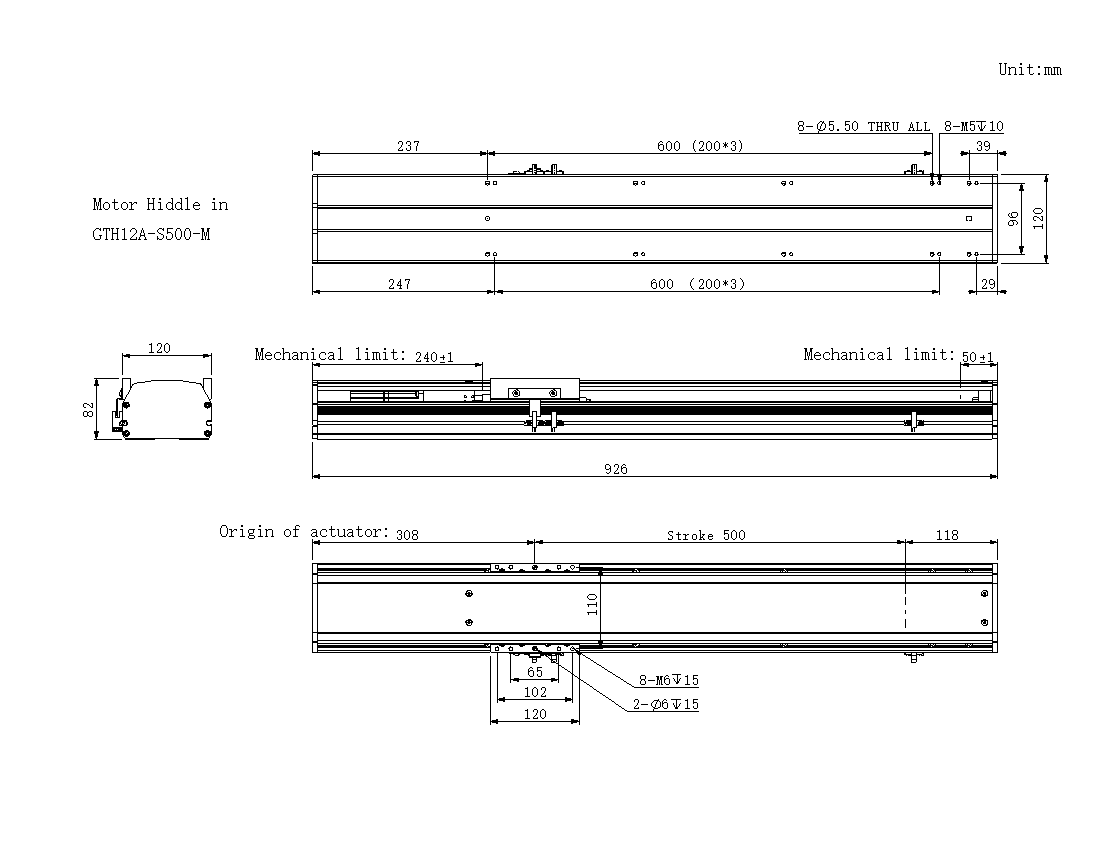

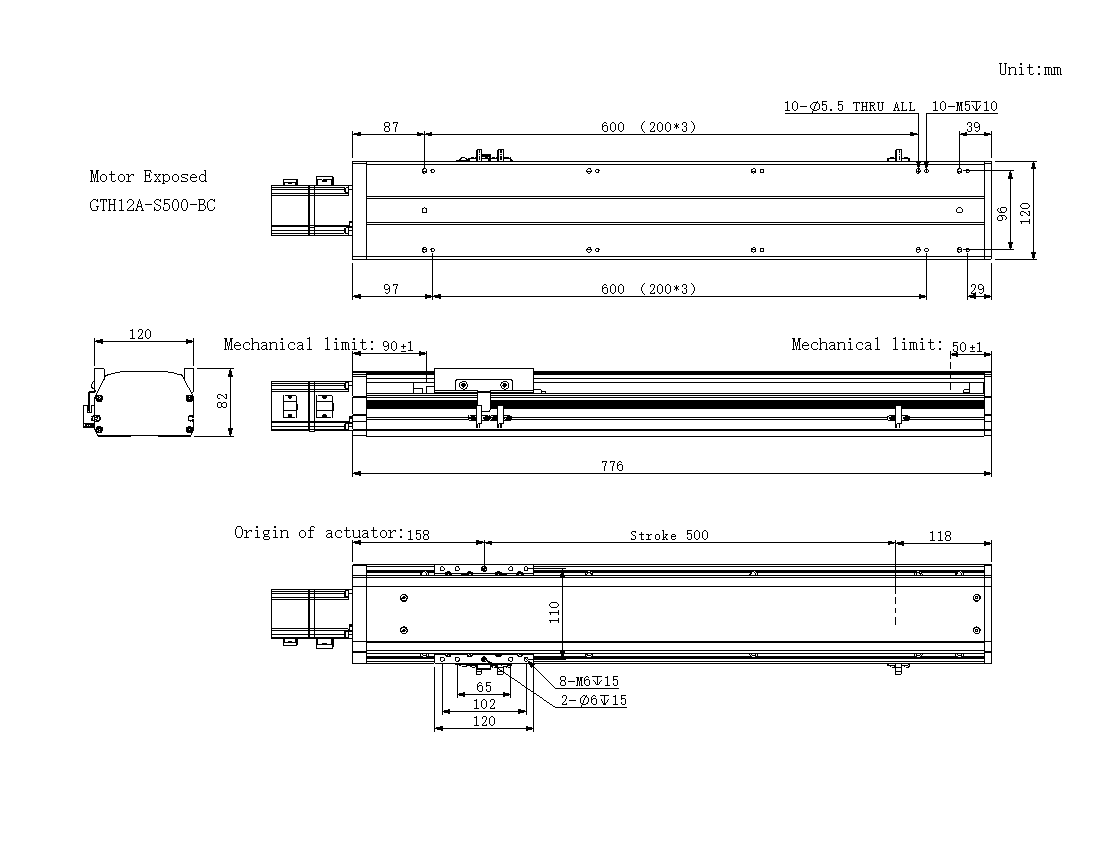

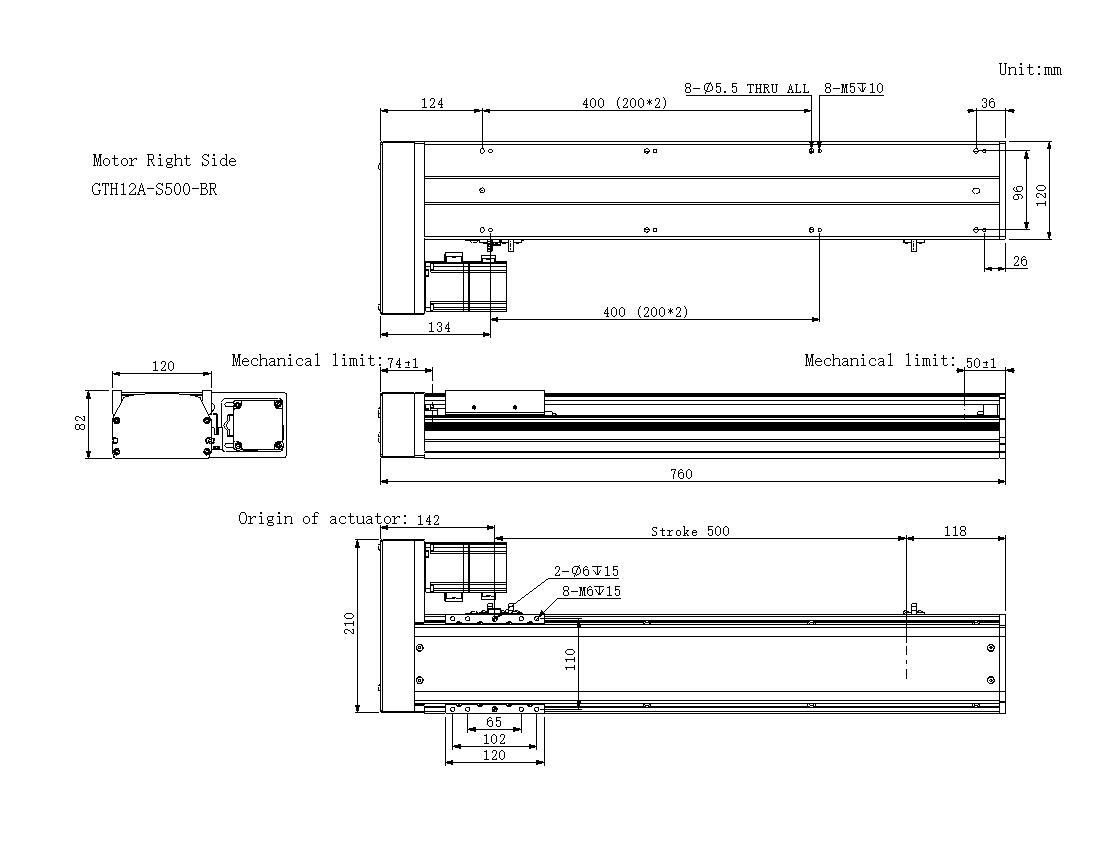

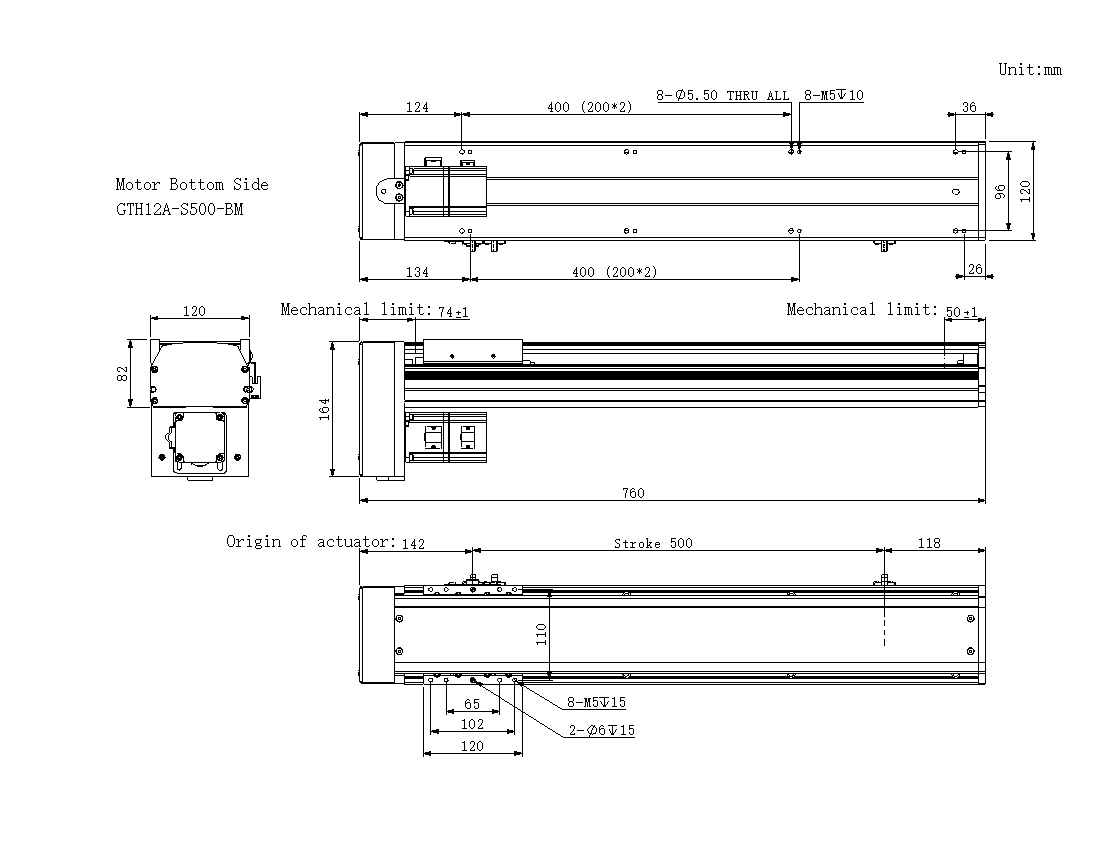

Discover our motion systems, showcasing our expertise in professional manufacturing and technical services. Our linear modules are a critical component of motion systems, featuring modular design for precise motion. This design enables batch production, cost reduction, and simplifies preliminary work for engineers and manufacturers, shortening production cycles and easing maintenance.
